The main weapon that we use, and also were issued during the war, is the Sharps Cavalry Carbine, either Model 1859 or 1863. It is called a breech-loader because you load the ammunition from the breech or back of the barrel.
Here are some pictures giving a better view of the main breech assembly.

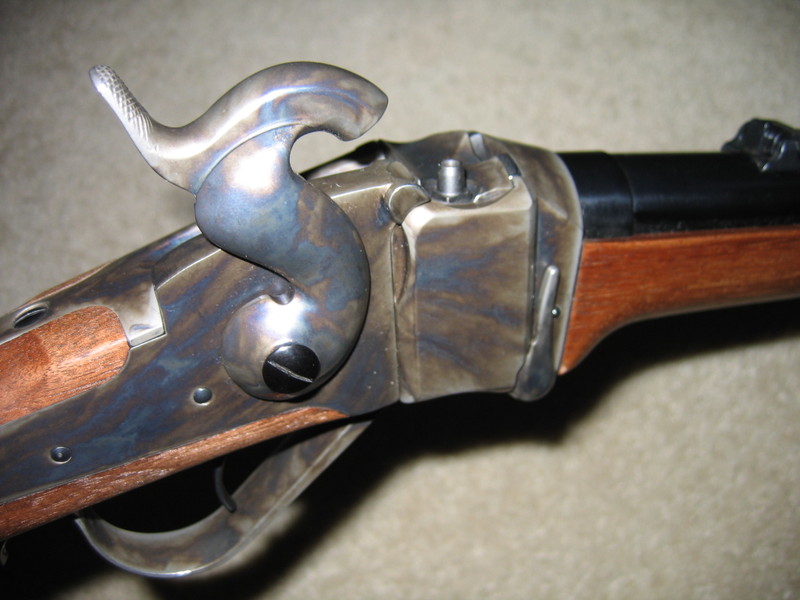

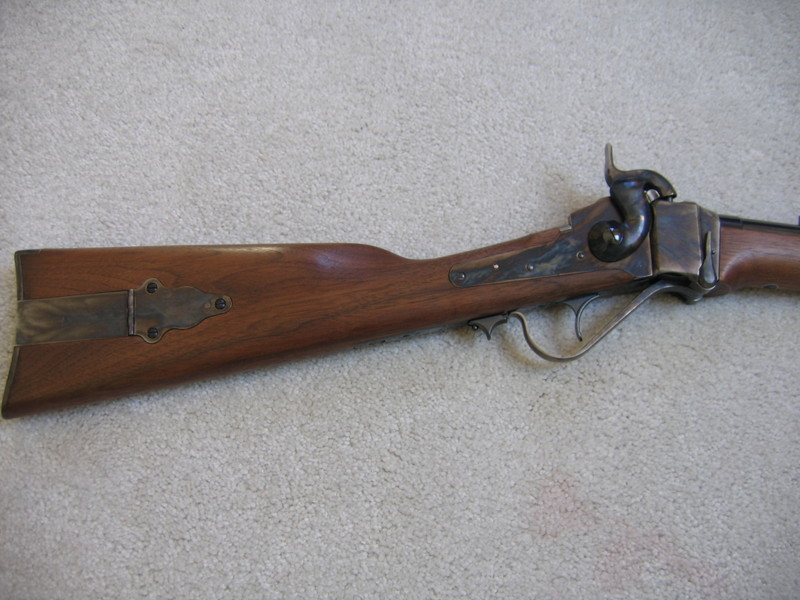

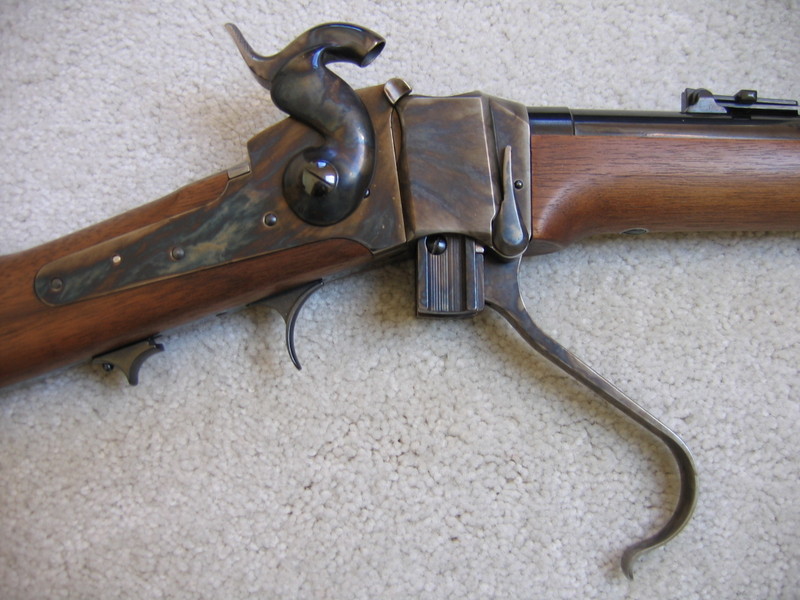

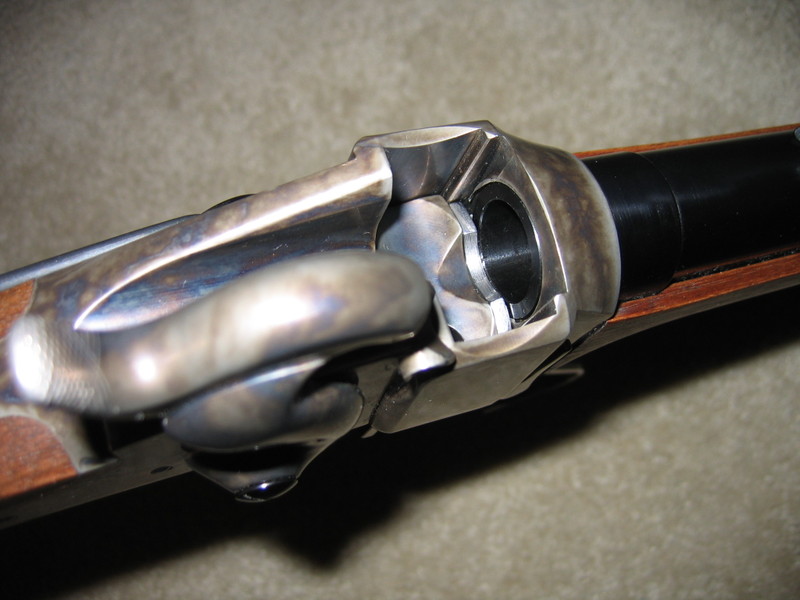

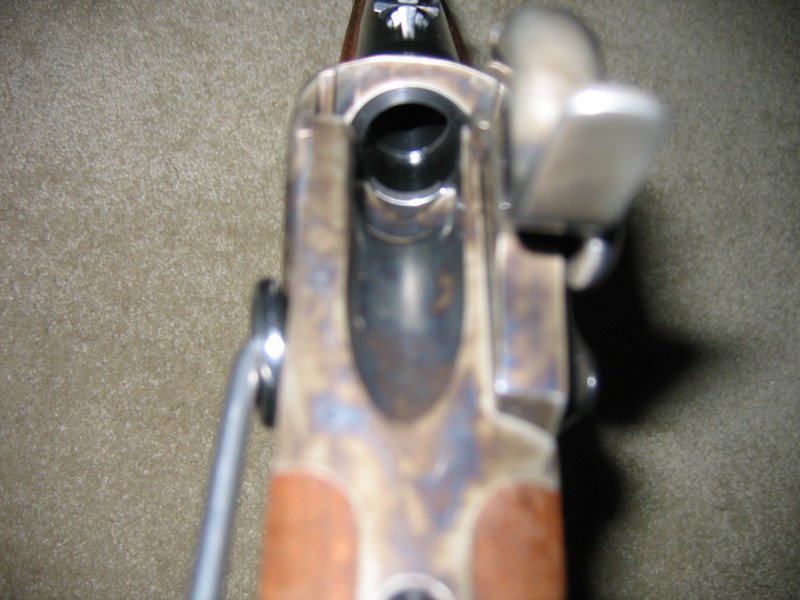

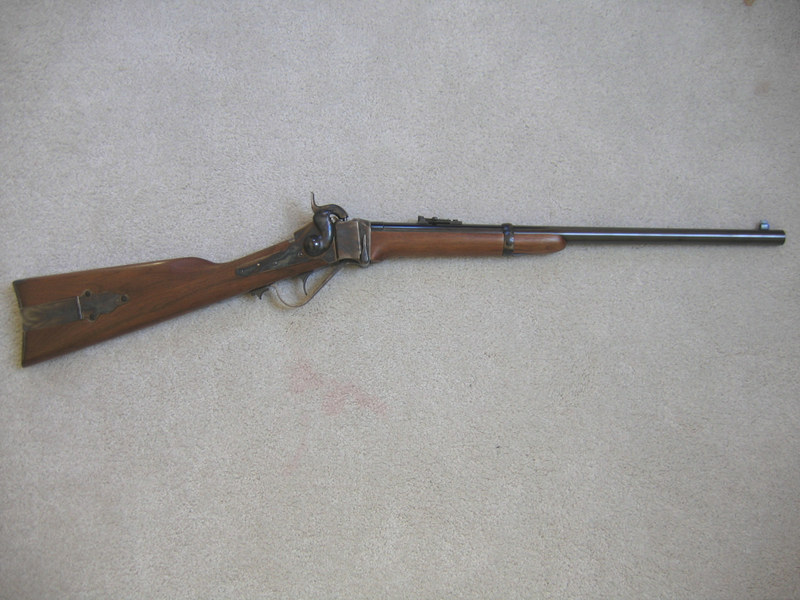

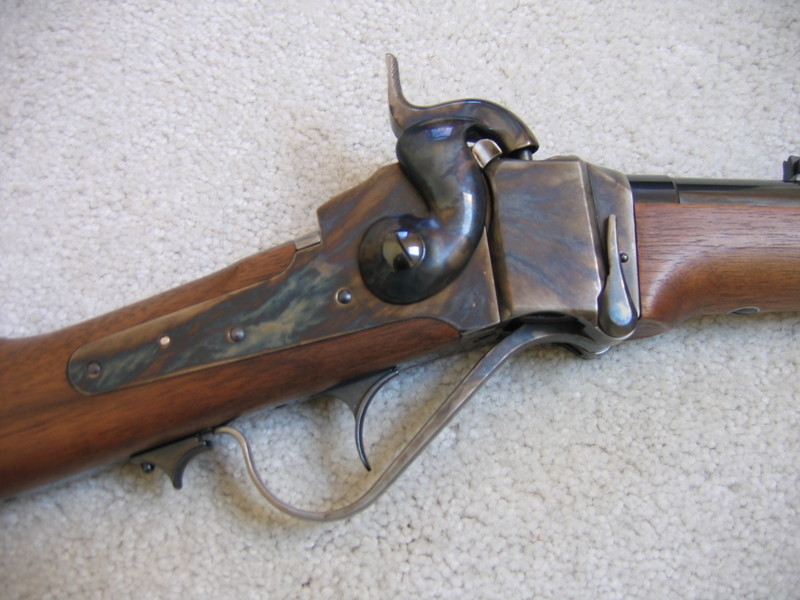

The entire gun. The Stock The Breech- Closed The Breech with hammer at Half-Cock The Breech completely open- Side The Breech completely open- Top Side The Breech completely open- Back View The Breech completely open- Top View
|         |
Loading Directions:
0. Remove spent percussion cap. (only if re-loading after being fired)
1. Pull hammer to Half-Cock. (1st click)
2. Open the breech.
3. Remove a fresh cartridge from cartridge box.
4. Place said cartridge into the breech with approx. 1/2" of tail sticking out.
5. Close breech, therefore cutting off the tail and exposing powder.
6. Remove a fresh cap from the cap box.
7. Place said cap on the cone.
8. Bring to Ready.
9. Pull hammer to Full- Cock.
10. Aim.
11. Fire.
12. Repeat from step zero.
Images supplied by Pvt. Michael Woolley.
This gun and other types like it can be bought at Fall Creek Sutlery, The Regimental Quartermaster, and many others. Links to these sutlers can be found on our Links page.

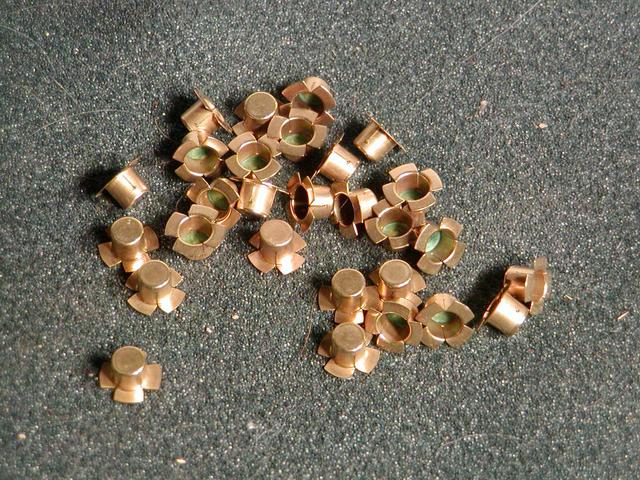

A group of 4 wing percussion caps. |  |
